LE-1BR

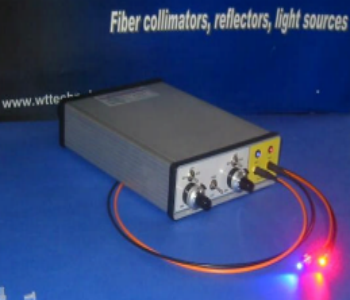

Fiber-coupled LED module LE-1BR
暂无
主要特征
返回列表页标准模块光学参数
| Part Number: | LE1-BR |
|---|---|
| Unit Number: | WLE1BR071 |
| Package type | OEM |
| Temperature stabilization | active |
| Fiber outputs | Multi-mode POF primary- coated/3mm jacketed 0.98 mm core diameter ~1 m long |
| Output connectors | FC/PC |
| Number of output channels | 2 |
| Number of remote “on/off” inputs | 2 |
| Power control knobs | 10 turn regulation |
| Mean wavelength Ch.1 (max power) nm | ~ 445 |
| Spectral FWHM Ch 1 (max power) nm | ~ 20 nm |
| Mean wavelength Ch 2 (max power) nm | ~627 |
| Spectral FWHM Ch 2 (max power) nm | ~ 19 nm |
| Cold start central wavelength shift nm | 0.5 |
| Long-term operating wavelength drift nm | 1.5 |
| Optical power Ch1 (min/max) mW | ~ 0.9/13.2 |
| Optical power Ch2 (min/max) mW | ~1.5/13.7 |
| Output power instability dB | ± 0.1 |
| Channels crosstalk dB | 0.02 |
| Remote control voltage (RCA-connector) V | + (4 to 5) |
| Maximum pulling force for fiber pigtails kg | 1 |
| Module dimensions cm | 25x17x6 |
| Weight kg | 1.3 |
| Power VA | 110 V AC 0.5A |
| Ambient temperature ℃ | 21 |
